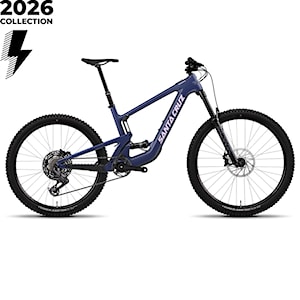

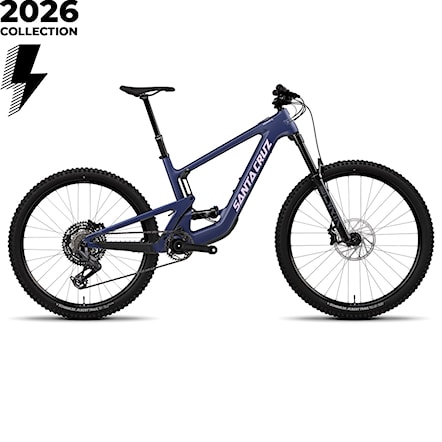

E-Bike Santa Cruz Heckler SL C 70 MX matte dark blue
Collection 2026 Product ID 150041
E-Bike Santa Cruz Heckler SL C 70 MX matte dark blue
Collection 2026 Product ID 150041
7 590.90 €
- Free shipping!
- We deliver probably on Friday 15. 5.
Santa Cruz Heckler SL C 70 MX Electric Bike
[Photos are illustrative and may not represent the actual setup of this bike model. See description below for exact specifications.]
Fast, light or powerful - choose all three together!
Thanks to the FAZUA RIDE 60 drive unit, the lightweight ebike Santa Cruz Heckler SL has plenty of power and a surprising range. There's no shortage of the renowned VPP suspension with 150mm rear travel, progressive geometry or mixed wheel combinations, making the Heckler SL a nimble and well-handling trail bike. Just with added electric support.
Middleweight World Champion
The Heckler SL is a trail bike with hidden superpowers. The reduced weight and natural torque delivery of the FAZUA RIDE 60 drive unit give you the feel of a classic trail bike. It just rides harder. The range is close to a full-size ebike, despite the smaller battery. The key is the lower consumption of the FAZUA system and the lower weight of the bike.
A control integrated into the frame allows you to switch between three riding modes and keep track of the battery level. The FAZUA app provides more detailed settings and information.
Key Features:
- Wheel size: MX (mullet)
- Front travel: 160 mm
- Rear travel: 150 mm
- Material: Carbon C
- Drive Unit: FAZUA RIDE 60
- Battery: 480Wh
Specifications
| Weight | approx. 19.95 kg |
| Material | Carbon C |
| Fork | RockShox Lyrik Base, 160 mm |
| Shock | FOX Float Rhythm, 210x55 or FOX Float Performance, 210x55 |
| Derailleur | SRAM 70 Eagle T-Type, 12spd |
| Shifters | SRAM 90 Eagle T-Type, Single Click, 12spd |
| Cranks | E13 Helix eSpec, 165 mm |
| Cassette | SRAM XS 1270 Eagle T-Type, 10-52 |
| Chain | SRAM 70 Eagle T-Type, Flattop, 12spd |
| Brakes | SRAM DB8 |
| Brake discs | SRAM Centerline, 200mm |
| Headset | FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated Headset |
| Handlebars | Burgtec Alloy Bar 35x800mm, 30mm Rise or e13 TRS Base Bar 35x800, 30mm Rise |
| Stem | OneUp Enduro stem 42 mm or e13 TRS Base Stem 40mm |
| Grips | Santa Cruz Bicycles House Grips |
| Front hub | SRAM MTH 716, 15x110, 6-Bolt, 32h |
| Rear hub | SRAM MTH 746, 12x148, HG, 6-Bolt, 32h |
| Rims | WTB ST Tough 30 |
| Front tire | Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft |
| Rear tire | Schwalbe Albert, 27.5x2.5, Trail Radial Soft |
| Seatpost | SDG Tellis Dropper, 31.6, S: 125 mm, M: 150 mm, L: 170 mm, XL/XXL: 200 mm |
| Saddle | SDG Bel-Air V3 Max |
| Drive | FAZUA RIDE 60, torque 60 Nm |
| Battery | FAZUA 480 Wh Integrated Battery |
[We reserve the right to change components due to differences between the actual bike specs and the manufacturer's declared specification.]
Recommended Sizes
- S: 154–165 cm
- M: 165–175 cm
- L: 172–185 cm
- XL: 182–193 cm
- XXL: 190–200 cm
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A - Reach (mm) | 435/432,4 | 460/457,4 | 480/477,5 | 500/497,4 | 525/522,5 |
| B - Stack (mm) | 614,9/616,8 | 624/625,8 | 633/634,9 | 651/653 | 664,5/666,5 |
| C - Head Tube Angle (°) | 64,3/64 | 64,3/64 | 64,3/64 | 64,3/64 | 64,3/64 |
| D - Seat Tube Lenght (mm) | 380 | 405 | 430 | 460 | 500 |
| E- Front Center (mm) | 766,1/765,9 | 795,4/795,3 | 819,7/819,6 | 848,4/848,3 | 879,9/879,8 |
| F - BB Height (mm) | 344/340,7 | 344/340,7 | 344/340,7 | 344/340,7 | 344/340,7 |
| G - BB Drop (mm) | F:28,5/31,8 R:9,9/13,3 | F:28,5/31,8 R:9,9/13,3 | F:28,5/31,8 R:9,9/13,3 | F:28,5/31,8 R:9,9/13,3 | F:28,5/31,8 R:9,9/13,3 |
| H - Wheelbase (mm) | 1209,1/1209,7 | 1238,4/1239,1 | 1262,7/1263,4 | 1294,4/1295,1 | 1329,9/1330,5 |
| I - Chainstay Lenght (mm) | 443/443,8 | 443/443,8 | 443/443,8 | 446/446,8 | 450/450,7 |
| J - Head Tube Lenght (mm) | 100 | 110 | 120 | 140 | 155 |
| K - Top Tube Lenght (mm) | 569,2/579,6 | 602,7/602,9 | 620,6/621,5 | 641,8/642,7 | 669,1/670 |
| L - Seat Tube Angle (°) | 76,8/76,6 | 77,1/76,9 | 77,5/77,2 | 77,7/77,5 | 77,8/77,5 |
| M - Standover Height (mm) | 720,1/716,2 | 733/728,8 | 733,4/729,3 | 731,7/731,6 | 741/738,6 |
