MTB – Mountain Bike Santa Cruz V10 CC Dh X01 29" gloss liquid blue
Collection 2027 Product ID 153204
MTB – Mountain Bike Santa Cruz V10 CC Dh X01 29" gloss liquid blue
Collection 2027 Product ID 153204
9 898.90 €
- Free shipping!

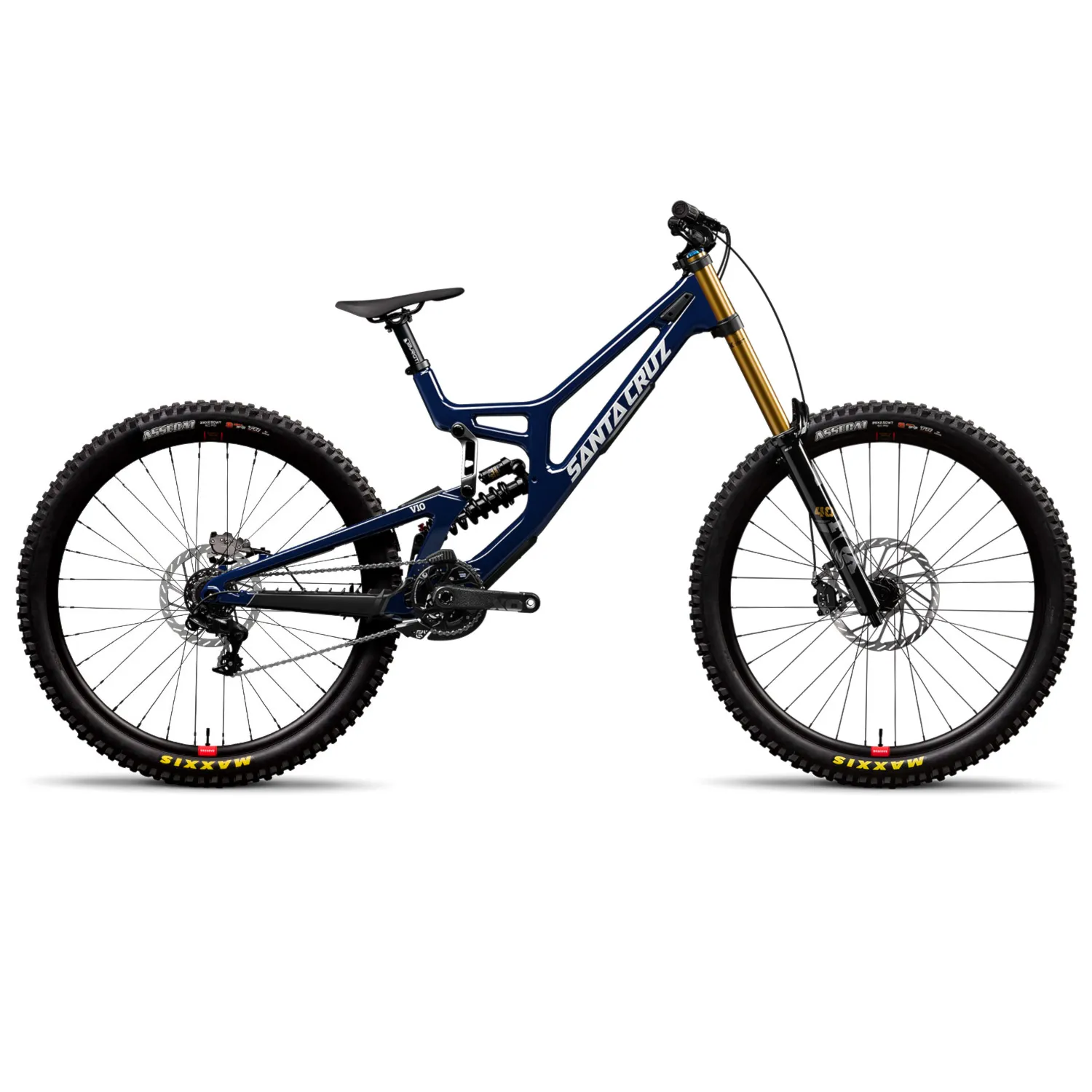

Santa Cruz V10 CC DH S-kit 29" Downhill Bicycle
[Photos are for illustrative purposes only and may not reflect the actual configuration of this bike model. Please see the description below for exact specifications.]
Want to experience the same downhill feel as the Syndicate riders? The Santa Cruz V10 helps win World Cups, and its latest version is a little more refined to deliver maximum performance on even the most demanding trails while giving you a sense of control and comfort.
This bike is ready for a big load and will tirelessly conquer one lap after another in the bike park. The VPP rear suspension system, three adjustable points for a perfect fit and a carbon frame. These are just a few of the features that will allow you to throw yourself down the hill and enjoy the ultimate adrenaline experience.
- VPP™ - Santa Cruz's unique rear suspension design is tuned for 208mm of travel and provides the perfect combination of comfort and performance.
- Three-point adjustment - adjustable reach using headset rings and a flip chip in the lower link and rear axle allows you to adjust weight distribution, riding position and stability on different terrain.
Key features
- Type: Downhill
- Front Travel: 200 mm
- Rear Travel: 208 mm
- Wheel size (for SL): MX (front wheel 29", rear wheel 27.5")
- Wheel size (for XL): 29"
- Material: Carbon CC
Specifications
| Weight | approx. 17.1 kg |
| Material | Carbon CC |
| Fork | FOX 40 Float Factory, Grip X2, 203mm |
| Shock | Fox DHX2 Factory, S: 450 lbs, M: 500 lbs, L: 550 lbs, XL: 600 lbs |
| Derailleur | SRAM X01 DH, 7spd |
| Shifters | SRAM X01 DH |
| Cranks | SRAM X01 DH, DUB 83, 36t All Sizes: 165mm |
| Cassette | SRAM X01 DH, 7spd |
| Chain | SRAM PC1170, 11spd |
| Brakes | SRAM Maven Silver |
| Brake discs | SRAM HS2 220mm/200mm |
| Headset | Cane Creek 50 IS41 Headset 1-1/8" |
| Handlebars | OneUp Aluminum Bar, 35 mm (Size S: Burgtec RW Alloy DH Bar, 31.8) S: 800 mm, 15 mm Rise, M/L/XL: 800 mm, 35 mm Rise |
| Stem | OneUp Direct Mount Stem |
| Grips | Burgtec Bartender Pro Grip |
| Front hub | Industry Nine 1/1, 20x110 Boost, 32h or DT Swiss 350, 20x110 Boost, 32h |
| Rear hub | Industry Nine 1/1, 12x157, XD, 32h or DT Swiss 350, DEG DF, 12x157, XD, 32h |
| Rims | Reserve 30|HD AL 6069 |
| Front Tire | Maxxis Assegai 29"x2.5", 3C MaxxGrip, DH |
| Rear Tire | Maxxis Minion DHR II 29"x2.5", 3C MaxxGrip, DH |
| Inner Tube | Tubeless Sealant |
| Seatpost | Burgtec Aluminum Post, 31.6 All Sizes: 300 mm |
| Saddle | Fizik Alpaca Gravita X5 Saddle |
[We reserve the right to change components due to differences between the actual bike specs and the manufacturer's declared specification.]
Recommended Sizes:
- S: 154–167 cm
- M: 165–175 cm
- L: 172–185 cm
- XL: 182–195 cm
How to register your Santa Cruz bike for a lifetime warranty
| XL | |
|---|---|
| A - Reach (mm) | 491-499-507 |
| B - Stack (mm) | 643 |
| C - Head Tube Angle (°) | 62,9 |
| D - Seat Tube Lenght (mm) | 465 |
| E- Front Center (mm) | 874 |
| F - BB Height (mm) | 353 |
| G - BB Drop (mm) | 19 |
| H - Wheelbase (mm) | 1335 |
| I - Chainstay Lenght (mm) | 456-461-466 |
| J - Head Tube Lenght (mm) | 120 |
| L - Seat Tube Angle (°) | 76,9 |
| M - Standover Height (mm) | 729 |
