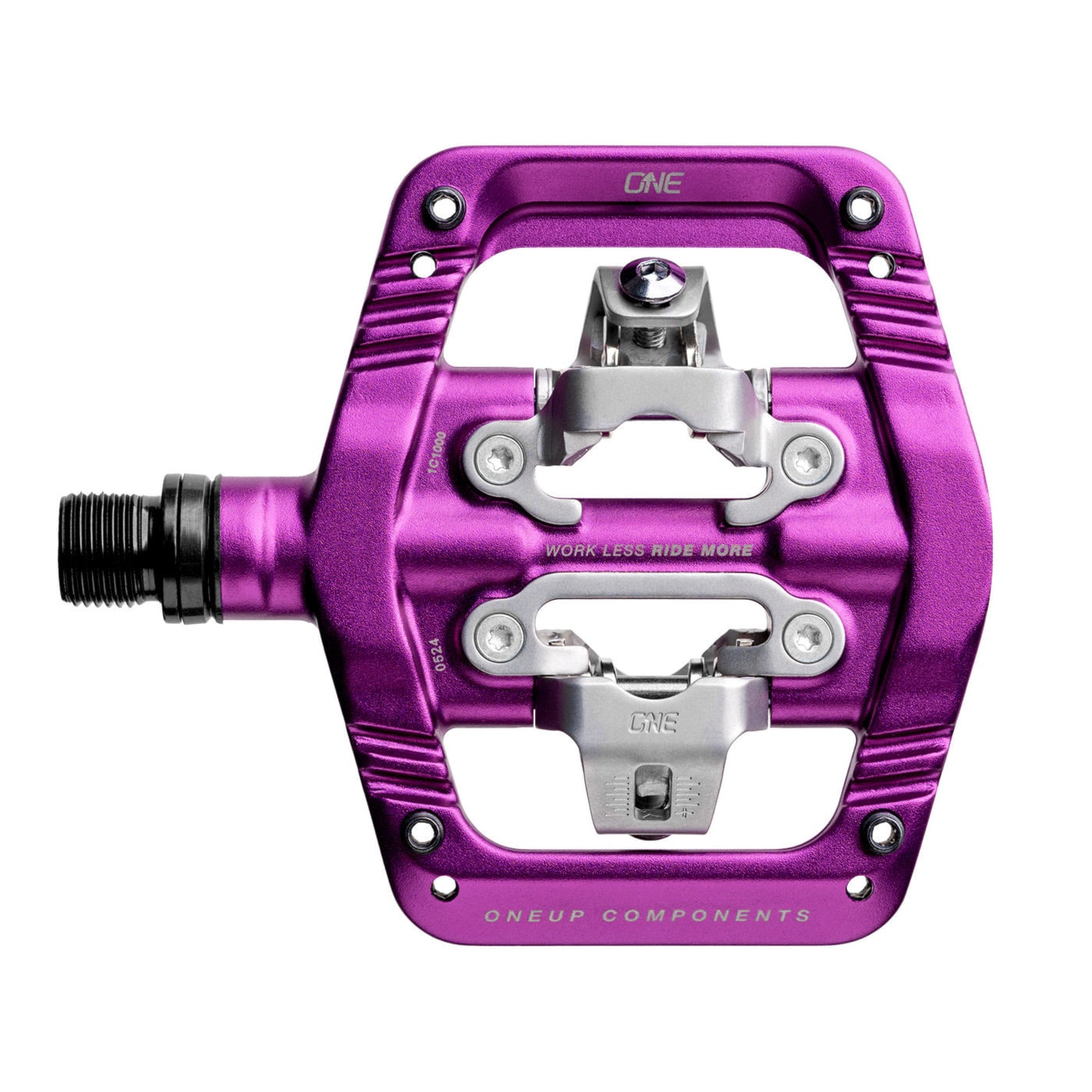

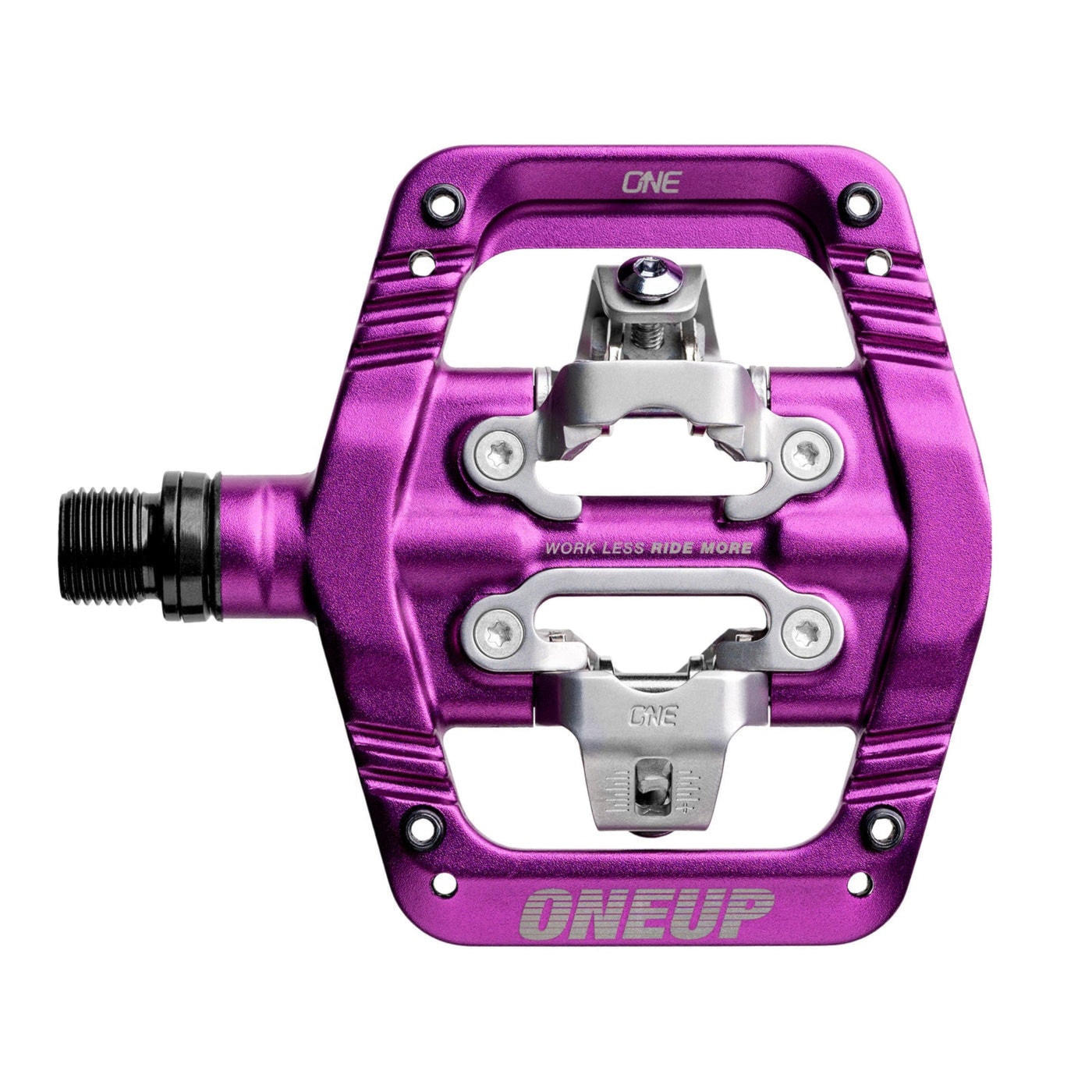

Pedals OneUp Clip Pedal purple

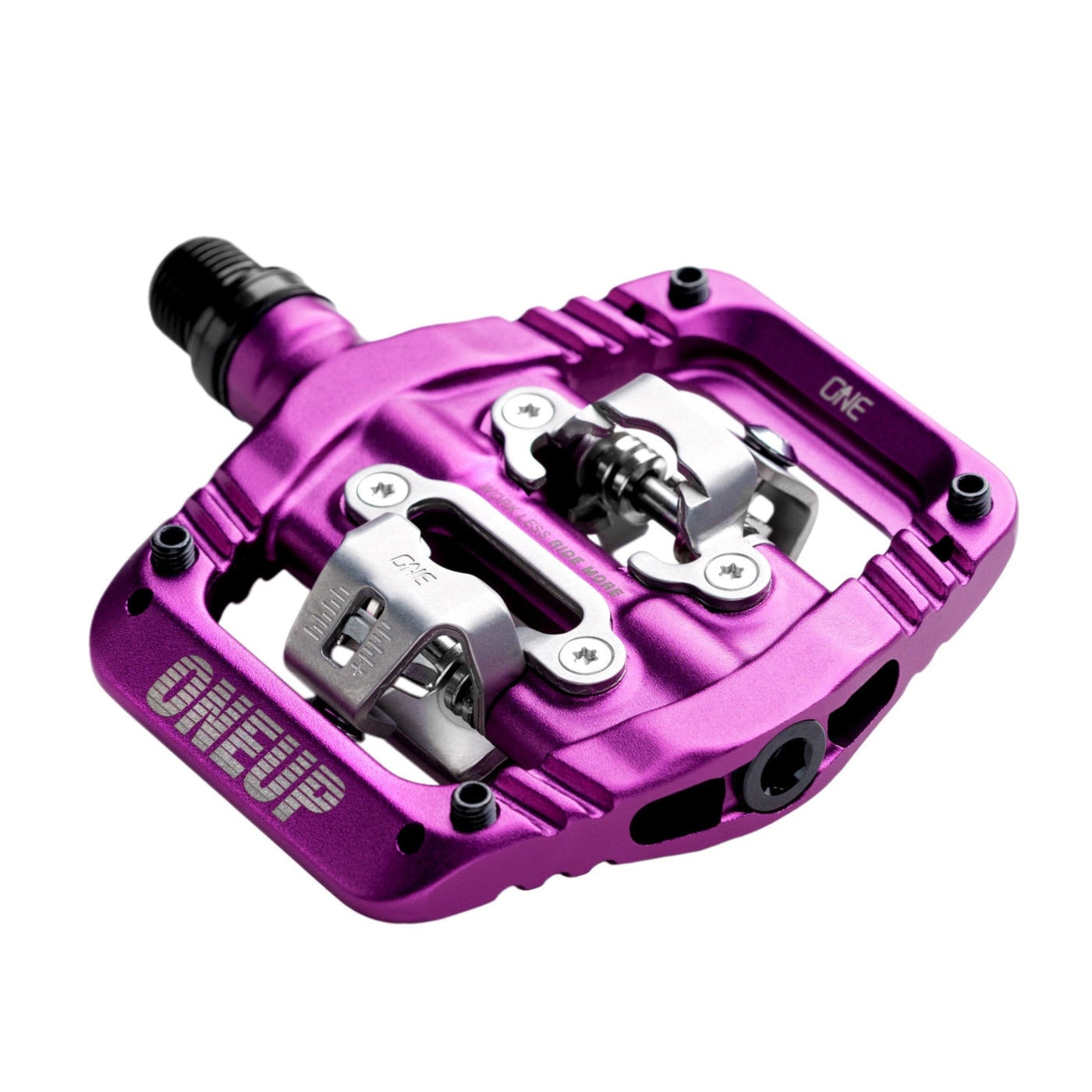

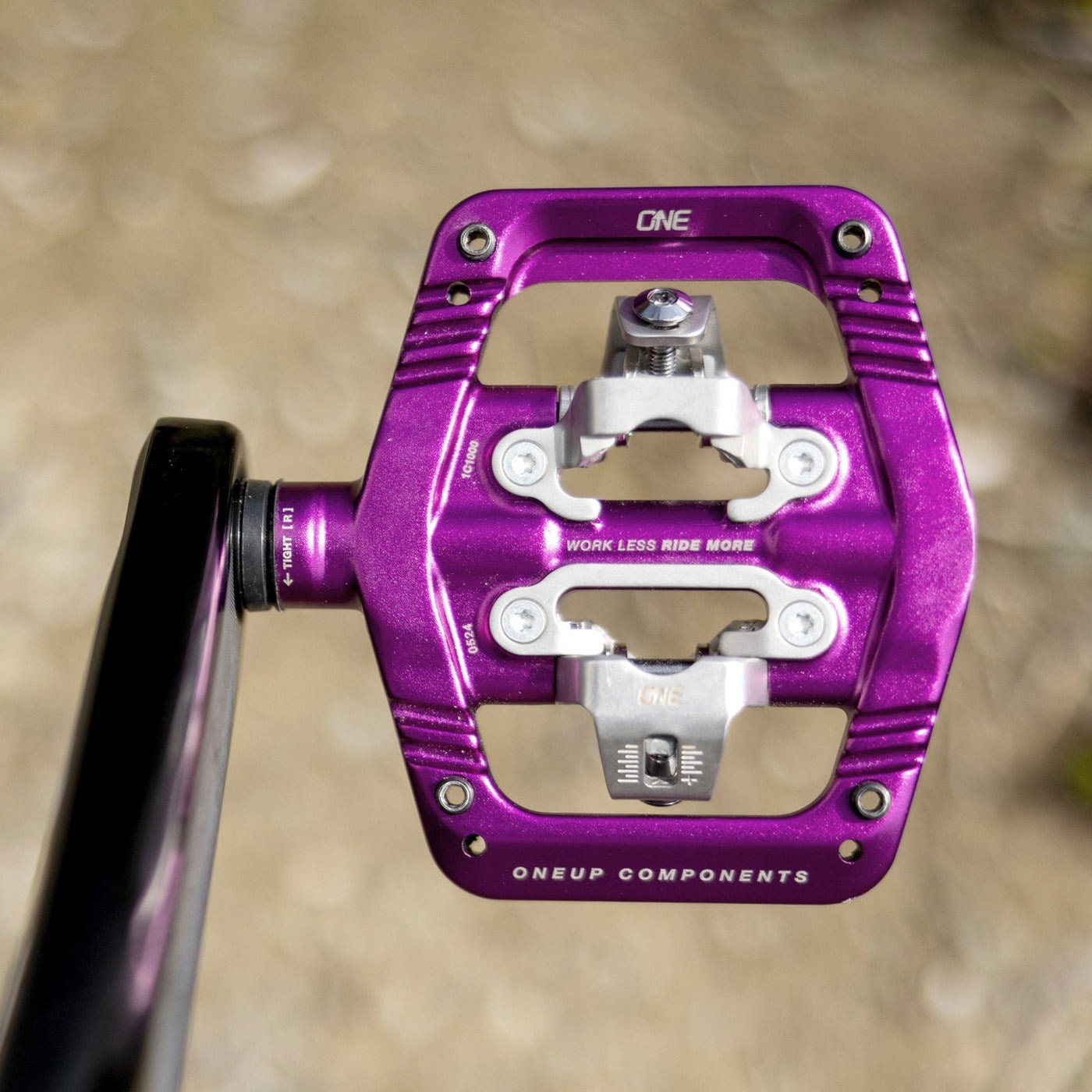

OneUp Clip Pedal

Lightweight enough for cross country and exceptionally durable for downhill. The new OneUp Clip pedals will impress you with how light, ultra-thin they are, while also giving you great grip and support thanks to a larger surface area and pins. Forget about not feeling the platform under your feet when pedaling. These pedals will provide support and confidence under your feet, plus the ability to fine-tune them to suit your riding style.

Main Advantages

• Ultra-thin pedals with a wide downhill platform
• Very light pedal compared to its dimensions

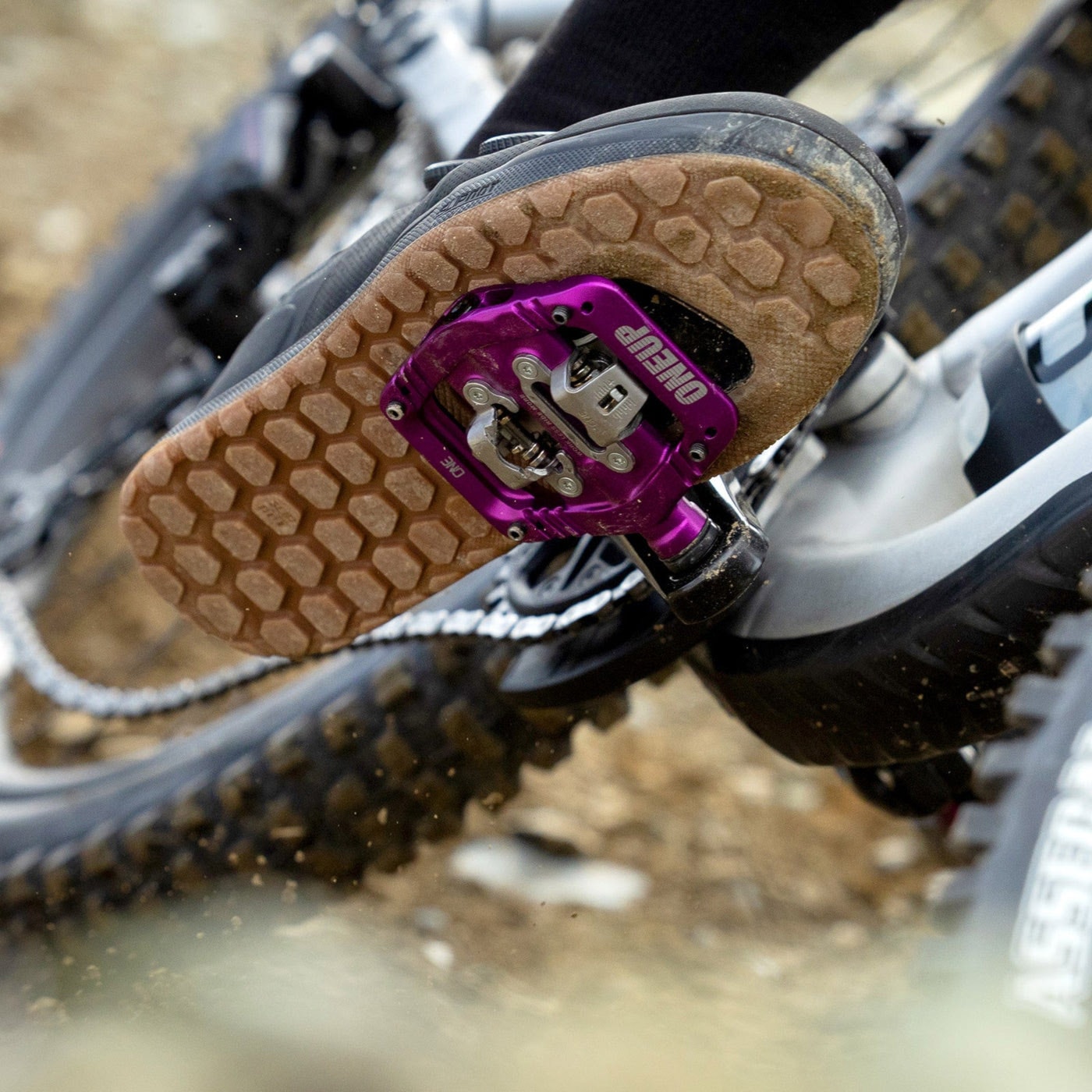

• A clip-on platform that actually contacts and supports your shoe
• 5° float and 12° trip angle
• Adjustable spring tension, removable pins and case spacers offer the possibility of a perfect fit
• A tool is included that allows for easy disassembly, cleaning and lubrication of the axle.

Specifications

• Weight: 410 g including pins (pair)

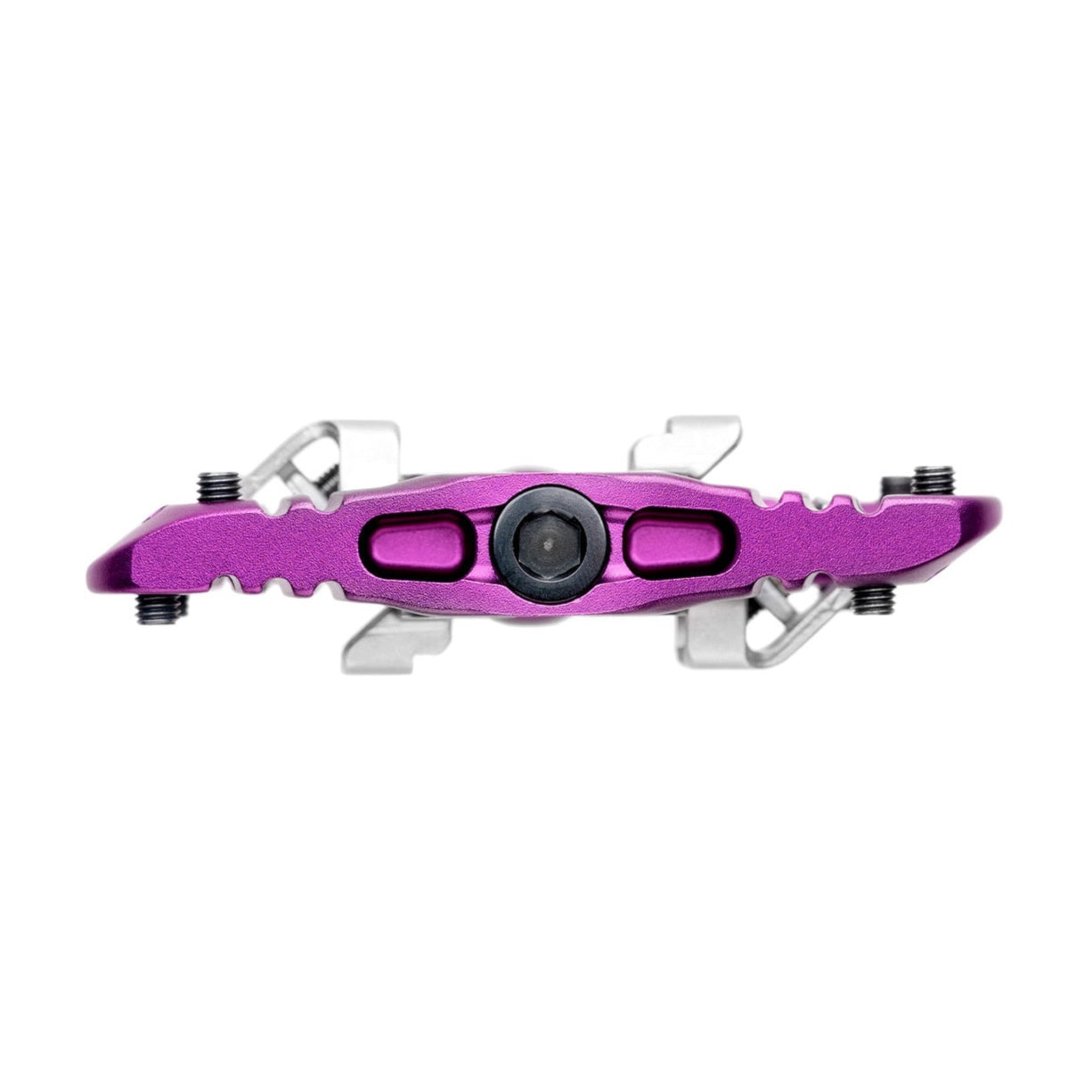

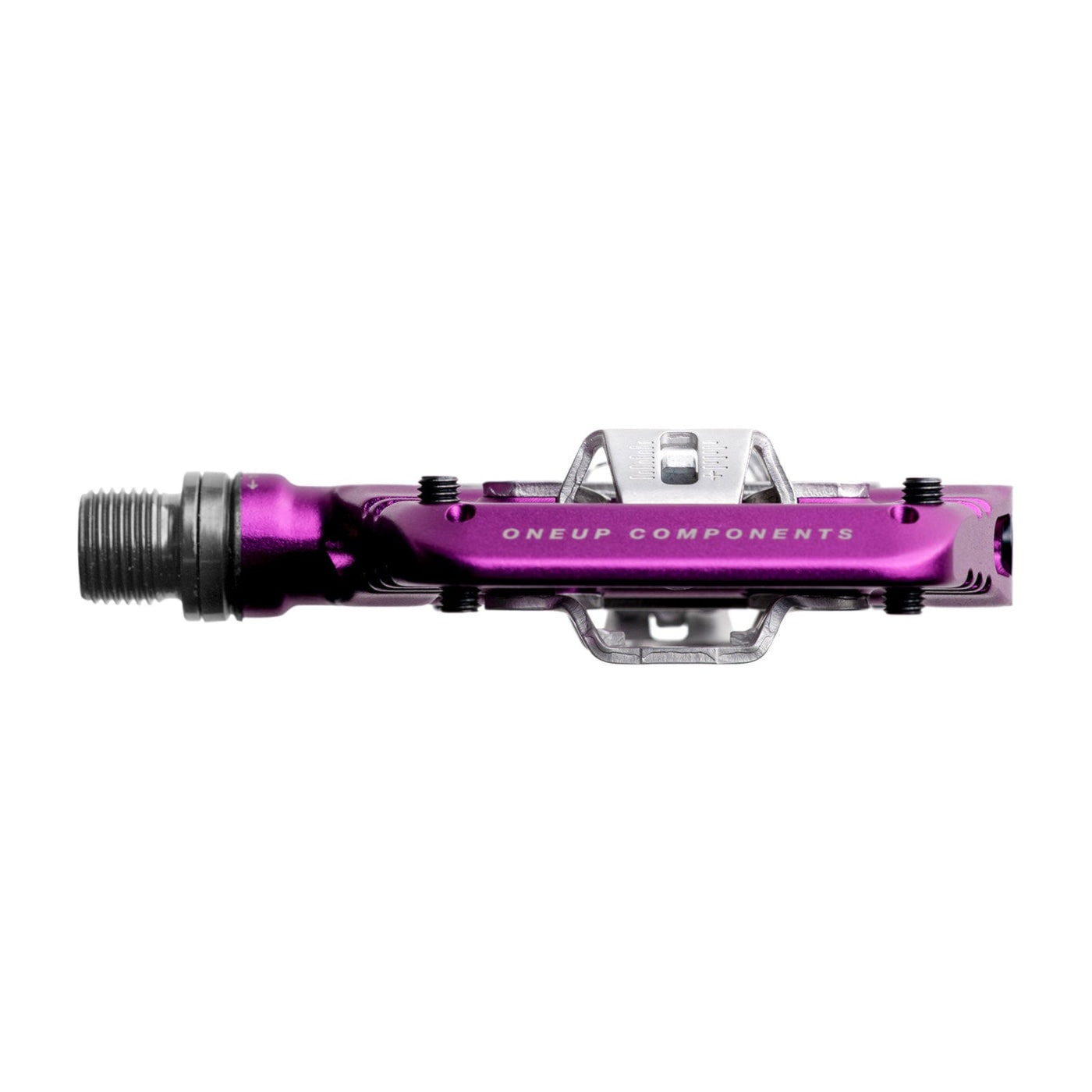

• Thickness: 14.4 mm (body profile), 26.8 mm (including treads)
• Dimensions: 80 mm × 90 mm (w × d)
• Foot position from the crank: 57.5 mm (distance from the center of the pedal to the crank)
• Trip angle: 12°
• Shoes: SPD™ compatible (includes 1mm spacer to match your shoe)
• Bearing Configuration: inner igus® bushing and 3x outer bearing with seal
• Axle: chromoly steel with Black ED finish
• Pins: hollow pins with M5 × 8 mm thread

Package Contents

• 2 pedals, right and left
• 16 pcs pins – installed pp 4 on each side
• 2 cleats including accessories for their assembly
• 2 pcs of cleats mats
• 1 pc Pedal Bearing Nut Tool
